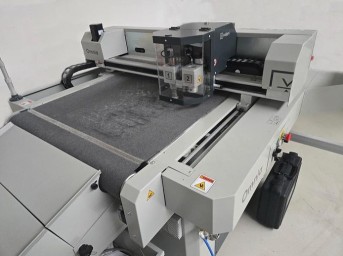

Die cutting machine

Price:

Year: 2021 Condition: functional Technical specification: • cutting Size Width Depth - 600x800 mm (23.6x31.5”) • width - 1617 mm/2190 mm w PC (63.6”/86.2”) • depth - 3835 mm (150.9”) • height - 1320 mm (52”) • weight - 850 Kg (1874 lbs) • minimum media size - 297x210 mm (A4) (11.6x8.2”) Portrait • maximum die-cutting size - 590x790 mm (23.2x31.1”) • width with safety mat - 3280 mm (129,2”) W/Safety mat • max cutting speed - 1.350 mm (53,1”)/sec (129,2”) • acceleration - 3 m (118”)/s2 • power requirements - 3-Phase - 400 V – 50/60 Hz 13A • power - 5,5 KVA • air requirements - 6 BAR/90 PSI (3.5 CFM) / 8 BAR/115 PSI (5.3 CFM) with oscillating tool • file format - SVG, .PLT, .DXF, .CF2, .HPGL, .XML, .PDF • tool - change manual • tools - availabile 90°, 45°, 40°, embossing, creasing and oscillating tool • tools Holder 2 + (1F) • connectivity - ethernet + USB • data buffer - external PC • media hold system - vacuum • fixed tool - NA • feeder capacity - 600 Sheets (300 gsm) - H. 200 mm (7,8”) • cutting capacity - 0.1 > 5 mm (0,19”) with tangential blade 0.1 > 12,7 mm (0,5”) with oscillating Blade • repeatability - ?0.1 mm • supported - OS Windows 7, 10, 11 • cropMarks Rec. - camera + software (Included)

We are providing good machinery for sales for our customers.
