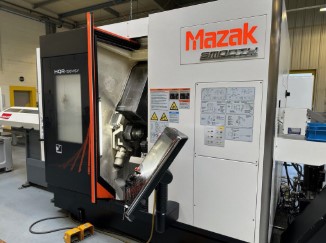

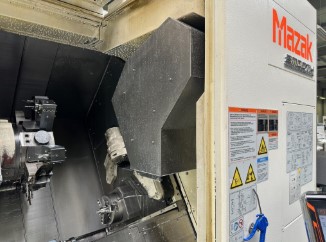

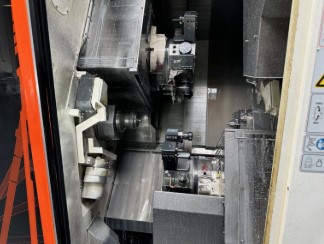

Reference Number 24056 mfg. year 04-2017 control Smooth G movements X1/X2-axis: 175/111 mm Y1/Y2-axis: 100/70 mm Z1/Z2-axis: 520/580 mm W-axis: 625 mm Max. Turning diameter (upper turret) 300 mm Max. Turning diameter (lower turret) 172 mm Max. Swing diameter (upper turret) 320 mm Max. Swing diameter (lower turret) 270 mm main spindle power output: 15 kW max. spindle speed: 5.000 rpm C-axis, 0.0001° Spindle nose A2-6 max. Bar capacity: 65 mm sub spindle power output: 11 kW max. spindle speed: 6.000 rpm C-axis, 0.0001° Spindle nose: A2-5 Tool turret 2 pcs. 12-position turret 2 x 12 driven tool positions Drive power: 5.5 kW max. Speed driven tools: 6,000 rpm More options • Automatic door • parts catcher incl. conveyor • high pressure pump 15 bar • swarf conveyor, right side • Robot interface (Advance/Profibus) • Gear Hobbing • Cylindrical + polar interpolation • Linearscales in X1-, X-2, und Z1-axis • sub spindle C-axis 0.0001° • bar loader Samsys Multi 3000 mfg. year 2018 Used Mazak Hyper Quadrex 150 MSY for sale Price on request. Availible for immediate delivery.
