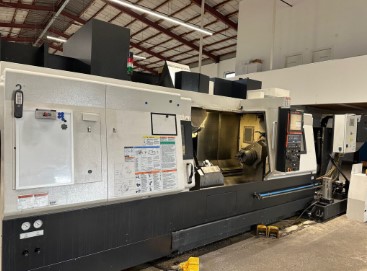

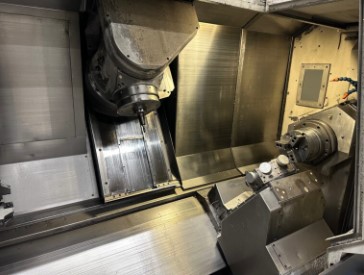

Reference Number: 24055 mfg. year 09-2007 control Mazatrol Matrix Max. Rotary diameter 660 mm Max. Turning Length 1.495 mm movements X-Axis: 580 mm Y-Axis: 150 mm Z-Axis: 1,545 mm W-Axis: 1,490 mm B-Axis: -30° to 210°” rapids X/Y/Z/W 50/40/50/30 m/min main spindle power output: 22 kW max. spindle speed: 4.600 rpm C-axis max. Bar capacity: 65 mm sub spindle power output: 18,5 kW max. spindle speed: 5.000 rpm C-axis Frässpindel Antriebsleistung: 18,5 kW max. Spindeldrehzahl: 12.000 U/min B-Achse: 0.0001° Capto C6 Tool Magazine / ATC 120 tool positions Max. tool diameter: 90/125 mm Max. tool length: 300 mm” max. Tool weight: 10 kg Lower Turret Drum Turret 9 tool stations 6 driven tool stations Max. spindle speed: 6.000 rpm additional equipment • Mayfran Consep 2000 II swarf conveyor, drum filter • preparation 70 bar • 70 bar high pressure pump • Milling spindle synchronized tapping • Cylindrical interpolation • preparation for Multi- and Flash Tool • Air-conditioned control cabinet • Conveyor belt for finished parts weight 12.000 kg
TYPE
HOW LONG
Company Name :
Torner CNC-Maschinen
Contact Person :
Torner CNC-Maschinen
Price
We are providing good machinery for sales for our customers.
