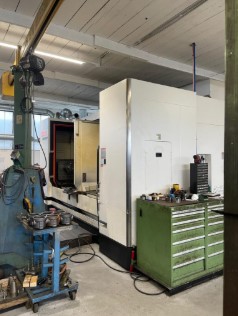

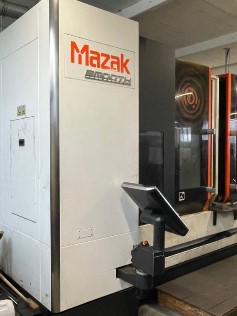

Reference number 24038 mfg. year 2022 control Smooth X movements X-axis: 3.000 mm Y-axis: 800 mm Z-axis: 720 mm B-axis: 220° C-axis: 360° distance spindle nose to table surface: 140 mm – 860 mm distance spindle center line to cover: 135 mm – 935 mm table table: 3.500 mm x 820 mm max. Table load : 2.500 kg rapids X/Y/Z: 50 m/min B/C: 50/25 U/min milling spindle Power output: 35 kW max. spindle speed: 18.000 rpm HSK-A63 Tool magazine Number of tool positions: 48 Max. tool length: 350 mm max. tool diameter: 80(130)mm max. Tool weight: 8 kg additional equipment • Additional work light • Tool magazine with 48 tool pockets (HSK) • electronic handwheel • Linear measuring rod system X-, Y-axis • TR500H2E07 Kitagawa rotary table, diameter: 500 mm • device for vertical use of rotary table • Preparation for use of rotary table right side • Preparation for use of rotary table left side • table partition wall • Mayfran chip conveyor, ejection left side • High-pressure pump 20 bar incl. filter • Synch. Milltapp • Max. extended memory 32 MB • Ethernet function • Cylindrical interpolation hours Power-on time: approx. 8,000 hours total cutting time: approx. 2,500 hours Used Mazak VTC 800 for sale. The machine is available for immediate delivery. Price on request. We offer transport and installation.
TYPE
HOW LONG
Company Name :
Torner CNC-Maschinen
Contact Person :
Torner CNC-Maschinen
Price
We are providing good machinery for sales for our customers.
