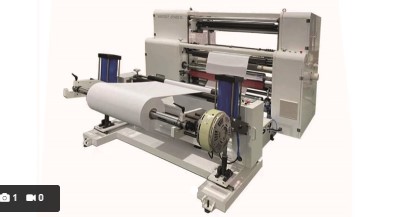

The slitting machine can cut the paper roll into the specified size paper roll. Technical Data • Max. Paper Cutting Width: 1400 mm • Max. Paper Roll Diameter : 1500 mm • Max. Rewinding Roller Diameter: 400 mm • Machine Max. Speed: 450 m/min • Max. Slitting Speed: 400 m/min • Tolerance Slitting Width: =±0.15 mm • Min. Slitting Width: 30 mm • Power Supply: AC 380V, 50HZ, 3 phases, 4 wires • Rated Power: 33 kw • Machine Dimension: L 3800 x W 2400 x H 1800 mm • Machine Weight: About 5000 kg Parameters • Power: 3 Phases, 380V ±10%, 50 Hz • Compressed Air: Pressure: 0.6 MPa | Oil and Humidity: ? 8 mg/m3 • Installation Height: Max. altitude: 1500 m • Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C Electronic Component • PLC: Siemens (Germany) • Touch screen: Siemens (Germany) • Servo motor: Duochauan • Servo driver: Farwide • Relay: Schneider (France) • Circuit breaker: Schneider (France) • Ac contactor: Schneider (France) • Button: Omron (Japan) • Solenoid valve: AirTas • Edge correction: ERS
