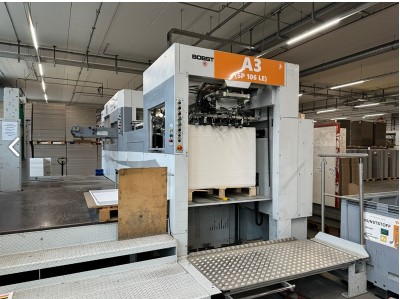

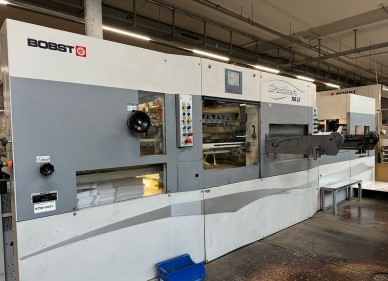

Die cutting machine

Price:

Less than 17,000 hours running time from new. Approx 90 million sheets produced. Elevated machine Max speed 9,000 cph Max size 760 mm x 1060 mm Cutting force upto 260 tonnes Feeder section with: - Optical Register Sheet Infeed System ORSIS (Optical Register Sheet Infeed synchronisation). - Platen with camshaft drive. - Machine compatible with HIGHWAY TDF-VIEW system. - Centreline system for fast job changes. - Electronic sheet flow control. - Adjustable centring on the stripper. - Control cabinet air conditioning. - Several automated functions to assist the machine operator including - Controlled machine stop after system error (allows the sheets in the machine without interruption). - Feeding of a sheet from the feeder into the stripping station for control of the die-cutting / creasing. - Feeding a sheet into the stripping station to check the tool position, if necessary. - Programmed stop of the machine for changing the equipment - Bobst-Electronic machine operating system C.U.B.E. ll (Control Unit Bobst Electronic) with colour screen. - Main drive by frequency-controlled asynchronous motor - The ORSIS optical infeed system includes: - Independent feeder controlled by electric shaft. - Optical side register control. - Automatic lateral stack correction (+/- 40 mm) controlled by the optical side register. - Automatic synchronisation device for optimum positioning of the sheets to the front lays. - Deceleration device with electronic control (3 speeds for feeding the sheets to the front lays). - Stepless stroke of the pile support plate to maintain a constant pile height. - Adjustable side blower . - Suction head with multiple adjustment options. - Optical side register control, without sheet contact, with large correction range in both directions (+/- 10 mm). - A camera aligns the sheets laterally according to the sheet edge or the print image. - Allows the alignment of all materials (paper, solid board, laminated corrugated board). - Coated with a stainless steel sheet, with antistatic effect. - Introduction to the feed table with side ramps. - 4 x Individually adjustable front lays with sheet control during production. - Control system by fibre optics - Double sheet control without contact. - Sheet hold-down device (guiding the sheets to the grippers). - Upper feed table frame with manual lifting aid. - Upper transport equipment for paper and cardboard. - 2 x transport belts. - With lateral guide and automatic clamping system. - Movable platen with short stroke and cam drive. - Cam-controlled platen movement allows a sheet transfer with low acceleration and deceleration. - Platen with constant parallelism over the entire pressure range. - Upper platen with vacuum. - Gripper reopening device. - Automatic centring and locking of the closing frame and the base plate. - Adjustable centring for base plate (+/- 0.9 mm). - Locking of the clamping frame against the upper platen. - Measuring the punching force with tension gauge. - Motorised adjustment of the punching force. By push button. - Support plate made of synthetic material. 12 mm thick. - A set of 5 x thin plates, thickness 1 mm - 1 x Upper quick-action clamping frame: screwed base plate (E-3) - Base plate, 2 mm thick, with a synthetic lashing protection plate,1 mm thick. 1 x levelling plate (E-5) 4 mm thick. This ground steel plate is designed for the use of thin punching plates. Advantageous for repeat orders. - Stripping station with: - Centre drawer frame with quick clamping. - BSSR - Upper quick clamping frame. - Integrated quick-clamping device for a finished upper stripping tool. - Adjustable centring for the upper, middle and lower stripping tool. - 1 x Fixing material for the upper stripping mould for quick clamping Allows the attachment of a wood stripping mould in the upper quick clamping device - integrated upper quick-clamping device. 1 x Fastening material for the stripping board on the cen
