Press Brake

Price:

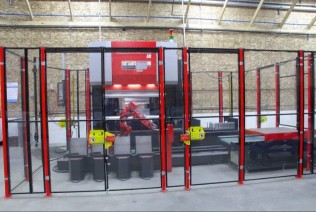

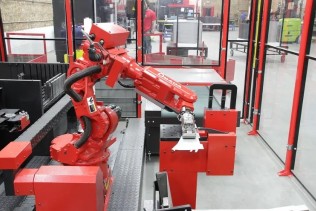

Overview Type: Press Brake Manufacturer: AMADA Model: EG-6013 AR Year: 2017 Stock #: 29466 Status: For Sale Description Amada EG-6013 AR Ultra Compact Bending Cell, 67 Ton Dual Servo Electric Press Brake, Yaskawa MH6S-10 High Precision 7-Axis Bending Robot, AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display, Very low hours (4500 hours), New 2017 Specifications Imperial Metric Tonnage 67 T Overall Length 53.1" Between Housings 39.8" Type ELE CNC Yes # Axis 7 Axis Backgauge, 6 Axis Robotic Arm Stroke 6" Amada EG-6013 AR Compact Bending Cell w/ Servo Electric Press Brake and Automated Robotic Bending System New 2017 - Excellent Condition Very Low Hours (4,581 Total Hours, 3,961 Run Time) Maintained Under Amada Service Since Purchased Machine Can Be Inspected in Plant and Under Power Features AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display Dual Electric Servo Drive Automatic Tool Changer and Part Loader/Unloader Yaskawa MH6S-10 High Precision 7-Axis Bending Robot Extensive Punch and Die Package Package PRESS BRAKE SPECIFICATIONS Maximum Tonnage Capacity: 67 Ton Maximum Bending Length: 53.1" Stroke Length: 6" Open Height: 16.5" Approach Speed: 8.7"/sec. Bend Speed: 1"/sec. Return Speed: 8.7"/sec. Floor Space: 211" L x 154" Wide x 105" High Weight (Brake Only): 8,200 Lbs. ROBOT SPECIFICATIONS Axis Configuration: 6-Axis Carriage Axis: 120" Max. Part Weight: 22 Lbs. Maximum Reach P-Point: 9.25" Tool Holder Length: 49.2" Max. Tool Length: 31.5" # of Tools: 10 Equipped With AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display Dual Electric Servo Drive Automatic Tool Changer Yaskawa MH6S-10 High Precision 7-Axis Bending Robot Potentiometer Backgauge with Side Gauge System High-Rigidity Frame for Large Open Height and Stroke 3 Gripper Station, Seamless Tool Change to Production Load/Unload to Drop Box or Conveyor $50,000 Amada Tooling Package Included Tooling List: DIE: FEL 89845 14 X 86 DEGREE R=25 H=150 27.4KG/M MAX 1000 KN/M SOOOOO5190 20mm x 4 15mm x 4 10mm x 2 100mm x 8 50mm x 4 30mm x 4 PUNCH: FEL 20166SE 86 DEGREE R=.06 H=150 27.4KG/M MAX 1000 KN/M SOOOOO5103 100mm x 4 50mm x 2 30mm x 2 25mm x 2 20mm x 2 15mm x 2 10mm x 1
