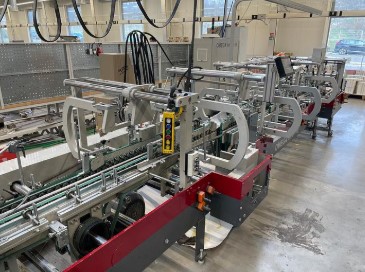

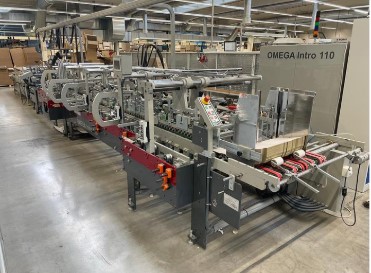

Folder gluer

Price:

Year: 2015 Condition: excellent Counter: 34 mil. Technical Specifications 1- Feeder • 3 KW feed AC motor for independent blank spacing • 8 feeder belts (26 mm) • Motor vibrating feed pile support for separating blanks and eliminating skips and doubles • 2 different sized pile supports • Dual diamond tipped feed gates adjustable in four directions, providing precise control on all blanks • Hopper sides independently adjustable in four directions • Modular feed carriers with individual belt tightening 2- Optional Side Register System The modular Omega Side Register System squares cartons prior to entering the prefold section, giving additional control over blanks. Two sets of upper and lower auxiliary carriers transport blanks through the section when the side register is not being utilized. • The Side Register is located on the left side of the machine, can be easily converted to left or right side registration. • Easily adjusted to various material thickness • 82 pieces of angled rollers • 2 lower (24 mm), 2 upper (19 mm) belts • 2 sets of extra carriers (put in use for lock bottom and tapered boxes when rollers are not used) • Spare rollers for different widths of glue flaps • Length: 1.000 mm 3- Pre-Fold Sections • Pre-break of the first creasing line up to 180°, 3rd creasing line up to 135° for straight line boxes • Third score belt 24 mm • Left and right hand glue flap breakers • High speed third score opener 4- Auto Bottom Unit • 2 lower and divided upper carriers • 3 sets (9 pieces) of shoes in different sizes • 6 pieces of folding hook assemblies • Various sized hooks • Located on PF1 and PF2 sections 5- Servo Back Folding System for 4 Corners The Omega Servo Back Fold System provides consistent and uninterrupted 4 corner back fold function and allows folding of all types of boxes within the machine range. The operator simply inputs the flap length into the touch screen. The system determines which one of the 3 finger sizes to be used for the job. Each job is saved in electronic value memory for future orders • 2 sets (6 pcs) of different sized, wooden (rock maple), folding shoes • Polyamide guides on the final fold section for 4 corner with lid • Located on PF1 and PF2 sections 6- Final Fold Section • Long final fold to provide easy box flowing • Drop in center carrier in final fold with 24 mm lower and 19 mm upper belts • Folder belts with independently adjustable speed (20 mm and 30 mm) • Chromium plated and sliding folding rollers with different angles which can be adjusted at four different positions • Easily adjustable lower left hand glue pot with 226 mm Ø wheel • 2 standard changeable brass glue disks available from 2,5 to 13 mm • Polyamide guides • Two different sized multi positioned swords • Pneumatic squaring system for micro flute auto bottom boxes 7- Delivery Section The special design of the delivery section offers more control over finished cartons with long delivery carriers and rugged construction, providing a greater range of carton placement on the stacker apron and the ability to “kick” cartons from either side. Dual lead-in carriers provide optimum stacking control for irregular shaped cartons. The adjustable nose rolls maximize pile depth in the compression section whether understacking or overstacking. • Dual adjustable 2 lower and 2 upper extended delivery carriers with easy adjustment for all kinds of carton styles and sizes • Belts can be adjusted while the carriers are running • Kicker / counter • 4 KW AC delivery motor for independent blank spacing • Electronic regulation system to provide continuous carton flow to the stacker entry 8- Stacker • Dual lead-in carriers with adjustable nose rolls to help stack irregular shaped cartons • Pneumatic, integrated compression stacker • 1,1 KW AC compression stacker drive motor • Independent speed adju
