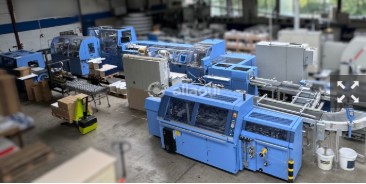

Book Production machine

Price:

Description The compact and flexible middle ground solution between industrial and digital production. Equipment Ribbon Inserter • Type: A751.1000 • AMRYS - Automatic Make Ready System Basic Book Line • System: BF PRO • Preloading conveyor • Elongated infeed with preheating • Preheater • Starfeeder • Backing and Rounding unit • Spine gluing unit with premelter • Lining station (gauzing) • Spine gluing unit with premelter • Headbanding station • Ribbon suction and gluing device • Full-Flap-Cases / Processing of Cases up to 100 mm • Asymmetric Case Device • Case magazine • Casing-in unit • Automatic Case Thickness Control Book joint forming and pressing machine • Right hand infeed • Delivery to the left Stacker • Type: BLSD 650 ER • Infeed conveyor • AMRYS - Automatic Make Ready System Technical Details • Mechanical speed max: 30 cycles per minute • Case size min: 210 x 105 mm • Case size max : 660 x 385 mm • Mechanical speed max: 30 cycles/min • Block size min: 100 x 100 x 2 mm • Block size max: 375 x 280 x 80 mm or 375 x 305 x 30 mm • Book size min: 105 x 105 x 6 mm • Book size max: 285 x 385 x 90 mm or 315 x 385 x 30 mm • Case thickness min: 0,1 mm • Case thickness max: 7 mm Current data • Compressed air requirement: 11 - 16 Nm³/h • Factory line pressure: 6 bar

We are providing good machinery for sales for our customers.
