Die Cutter machine

Price:

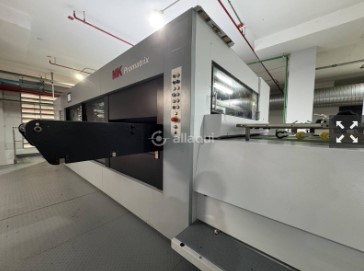

Description This Heidelberg MK Promatrix 145 CSB is a high-performance die-cutting and embossing machine designed for large-format packaging production. The machine is ideal for High-Volume packaging production, producing folding cartons and corrugated packaging. Equipment Feeder • Non-Stop feeder • Feeder type: Master Feeder with Master Logistic • Double sheet control • Pile height max: 1,800 mm • MasterSet • Pneumatic opening of the cover frame • Sheet arrival monitoring • Ultrasonic double sheet detection • Sheet stopper device • Register System Processing • Pre make ready table • Blanking Unit • Stripping Unit • Centerline System • Centerline in punching • Centerline in stripping station • Quick Lock • Touch Screen Control • Oil cooler • Fine adjustment System Delivery • Non-stop delivery • Fully automatic pallet changing system • Centerline System • Sample Sheet Removal System • Top Blanking Unit • Bottom Blanking Unit • Pile Sensor • Tie Sheet Inserter Technical Details • Size max: 1,060 x 1,450 mm • Size min: 450 x 580 mm • Mechanical speed max: 7,000 sheets/h • Cutting force max: 550 t Processable materials • Paper: min. 90 g/m2 • Carton Board: max. 2,000 g/m2 • Corrugated board: max. 2 mm Current data • Compressed air requirement: max. 48 m³/h • Machine dimensions: 12.9 x 7.6 x 3.3 m
