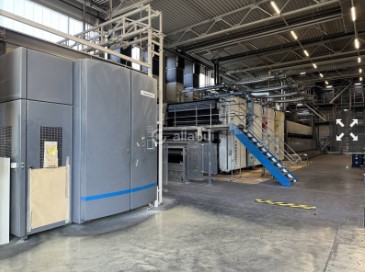

Heatset / Commercial machine

Price:

Description Folding unit equipped with a 4-section module, which can be supplemented with a 5-section module, resulting in a cutting dimension of 246 mm in addition to the cutting dimension of 307. Key Data • Machine Type: Lithoman IV 96 pages SFF-2 • Paper Flow direction: Left-to-right • Paper Fiber direction: Long Grain • Cylinder Circumference: 1228 mm (48.3") • Cutoff: 4 x 307 mm / 4 x 12" (AB) or 5 x 246 mm / 5 x 9.7" (AA) • Paper Width max.: 2860 mm / 112.6" • Paper Width min.: 1080 mm / 42.5" • Speed: 45,000 cylinder rotations per hour • 4 colors • Control Systems: PECOM, PECOM ConsoleSystem Possible end products • Product Height (fixed): 307 mm / 12" or 245.6 mm / 9.7" • Product Width after Funnel Fold max.: 310 mm / 12.2" • Product Width after Funnel Fold min.: 178 mm / 7" Possible signatures with respective width • 4 x 12 pages: 180 to 310 mm / 7.1" to 12.2" • 4 x 16 pages: 180 to 310 mm / 7.1" to 12.2" • 8 x 8 pages: 180 to 310 mm / 7.1" to 12.2" • 4 x 20 pages: 180 to 286 mm / 7.1" to 11.3" • 4 x 24 pages: 180 to 238.3 mm / 7.1" to 9.4" • 8 x 12 pages: 180 to 238.3 mm / 7.1" to 9.4" • 4 x 28 pages: 180 to 204.3 mm / 7.1" to 8" • 4 x 32 pages: 178.8 mm / 7" • 8 x 16 pages: 178.8 mm / 7" • 5 x 12 pages: 180 to 310 mm / 7.1" to 12.2" • 5 x 16 pages: 180 to 310 mm / 7.1" to 12.2" • 10 x 8 pages: 180 to 310 mm / 7.1" to 12.2" • 5 x 20 pages: 180 to 286 mm / 7.1" to 11.3" • 5 x 24 pages: 180 to 238.3 mm / 7.1" to 9.4" • 10 x 12 pages: 180 to 238.3 mm / 7.1" to 9.4" • 5 x 28 pages: 180 to 204.3 mm / 7.1" to 8" • 5 x 32 pages: 178.8 mm / 7" • 10 x 16 pages: 178.8 mm / 7" Machine configuration Reel Transport System • Type: Contiweb Reel Splicer • Type: Contiweb FD 18-2860 • Year of manufacture: 2015 • Max. roll diameter: 1524 mm / 60" • Roll change mechanism: "flying change" (at full speed) Paper feeding device • Type: manroland • Position: SII (Drive Side) • Starting point: At the paper roll in reel splicer • End point: Web Splitting Unit at Folding Superstructure • Feeding speed: 50 m/min (165 feet/min) Infeed Unit • Integrated in Reel Splicer • Electronic Web Tension Control Printing System • 4 double printing units • Upright design • Sleeve rubber cylinder • Plate changer: APL Automatic Platechange System • Plate lifts: Agrama • Rubber blanket washing system: Elettra FastWash • Inking unit washing system: Elettra / manroland • Dampening solution supply: Technotrans delta.d 550 • Fanout control: manroland InlineFanoutControl • Web catching device: Baldwin WebCatcher S18i with DSA • Pre-installation system (Fluid-Box) • Anti-emulsification device • AutoGrease (for narrow web production) • AutoCycle Dryer • Type: Contiweb Ecoset/T 148-2860 • Cooling unit: 9 rollers, integrated • with adjustable rehumidification • with adjustable silicone application Folding System Superstructure • Color register control: manroland CRC-PU with PECOM ConsoleSystem • Color density measurement and control system: Manroland IDC InlineDensityControl • Siliconizing units: manroland/Weko WFG 1.4 • Max. number of webs: 9 • Cutting device controllable from control station • Turner bar assembly • Max. working width of turner bars: 620 mm / 24.4" • Cut register control: manroland InlineCutoffControll (ICC) + Cutoff Control Dynamics (ICCD) Folding Unit • Type: SFF-2 (FE1) Funnel fold • Max. working width: 620 mm / 24.4" • Max. number of webs: 9 Secondary Funnel fold • Max. working width: 620 mm / 24.4" • Max. number of webs: 4 Inline Finishing • Longitudinal gluing and folding aid device: Planatol Combijet 9 NET • No. of heads: 8 • Electrostatic web blocking: Eltex GHH 36 Cutting Unit • Cutter • Knife beam for cutting 4 sections • Knife beam for cutting 5 sections • Max. thickness of paper webs: 2 mm / 0.08" • Integrated chaining perforation • Splitting device • 2 paddle wheel systems • 2 delivery belts Control Unit • PECOM ControlCenter • 1x Cont
