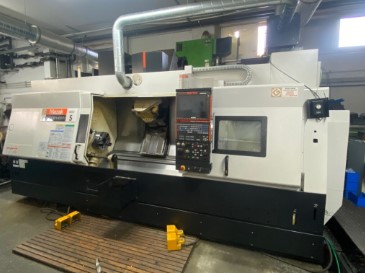

Reference number 24076 mfg. year 2007 control Mazatrol Matrix Max. Rotary diameter 760 mm Max. Turning Length 1.524 mm movements X-axis: 630 mm Y-axis: 230 mm Z-axis: 1,585 mm W-axis: 1,530 mm B-axis -30 to 210° rapids X/Y/Z/W 50/40/50/30 m/min Main spindle Power output: 30 kW max. Spindle speed: 3,300 rpm C-axis max. Bar capacity: 102 mm Sub spindle Drive power: 26kW max. spindle speed: 4,000 rpm C-axis Milling spindle Drive power: 18.5 kW Max. spindle speed: 12,000 rpm B-axis: 0.0001° Capto C6 Tool magazine / ATC 80 tool positions max. tool diameter: 90/125 mm max. tool length: 400 mm max. Tool weight: 10 kg additional equipment • Air and Coolant Blow Through the RH Spindle • High-pressure pump 70 bar 20 l/min . SPS with 7 pressure stages • Chip conveyor MAYFRAN CONSEP 2000 II 70 bar 20 l/min . SPS with 7 pressure stages • Barfeeder interface • Automatic parts catcher • Synchronized thread cutting • EIA/ISO 5-axis simultaneous machining • preparation Flashtool, Multitool • Tool Tip Control Simultaneous 5-axis • Shape compensation for rotating axes • Cylindrical interpolation • direct scale X-axis • Full C-axis sub spindle • 1 pcs. 3-jaw chuck, Kitagawa B212 • 1 pcs. 3-jaw chuck, Kitagawa B210 weight 13.500 kg Mazak Integrex 400 IV S used for sale. Price on request .
