Flexographic Equipment

Price:

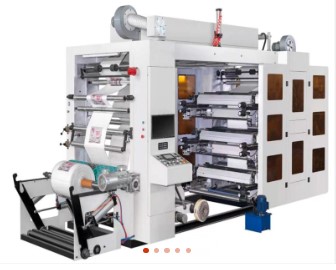

FLEXOR FLEXOGRAPHIC PRINTING PRESS Made of rigid and Robust Construction to ensure safety and quality also stability and High speed with less vibration, low noise, printing quality and minimum chances of industrial downtime. Power saving, and finest quality output. Operation and adjustment Very Simple and Quick, Change of Size can be done in Few Minutes, it is Easily to Operate the Machine Successfully. Flexor printing Press designed for doing basic, four colour printing prepared easily to be installed, anilox roller made from ceramics. It is an integrated system enabling to make printing with Intrinsic accuracy and it is fairly easy to use. PLC control. The machine is suitable for, Kraft paper, shiny paper, coated paper board, recyclable materials without losing print quality or efficiencies in roll material Flexor machine ideal for producing a variety of daily eco-friendly Paper cup, paper bowl paper bags widely used in bakery’s, pharmacies, fast food restaurants, Coffee shops, Supermarkets, and Retail Outlets. Flexor 1000 Printing Machine: 1) Machine Specifications: Max Width of Material: 1000 mm Max Width of Printing: 960 mm Material Compatibility: Paper: 17–350 g/m² Nonwoven: 15–120 g PVC: 10–120 µm OPP: 10–100 µm BOPP: 10–100 µm PE: 15–150 µm NY: 10–120 µm PET: 10–100 µm CPP: 10–100 µm PP woven: 0.01–5 mm Printing Colors: 4 colors Max Length of Printing: 280–1200 mm (one set of 400 mm provided for free) Printing Speed: 10–120 m/min (varies with material) Voltage: 380V, 3PH, 50HZ Thickness of Plate: 1.14 mm, 1.7 mm, 2.28 mm, 2.54 mm, 2.94 mm resin plate (3.94 mm rubber plate) 2) Unwind Unit: Max Diameter of Unwind: 1200 mm Type of Unwind: Pneumatic auto loading Unwinder EPC: U type (ultrasonic) Axis Core Diameter: 76 mm Auto Tension: Magnetic powder, 10 kgs 3) Traction Unit: Constitution of Traction: Aluminum roller, Chrome plated Roller Traction Zones: 2 Zones 4) Printing Unit: Principle of Work: Belt driving, all gears outside machine base Adjusting of Register: Manual + Motor/PLC control (up and down, left and right) Overprint Precision: ±0.2 mm Printing Cylinder and Ceramic Anilox Roller Movements: Manual + Hydraulic type, auto horizontal type Anilox Roller: 4 pcs, Ceramic Anilox Roller, dia. 106.2 mm Chamber Doctor Blade: 4 pcs, teflon treated Ink Tray: 4 pcs, teflon treated Ink Pump: 4 pcs (double diaphragm) Printing Station: 32 pcs Bottom Roller: Chromed treated Ink Type: Water ink or solvent ink 5) Heating and Drying Unit: Heating Type: Blowing first then heating Heating Power: 30 kW Inverter: 3.7 kW 6) Electrical Parts: Main Motor: 3.7 kW (An Inverter Equips With the Main Motor) Ink-Transfer Motor: 3.7 kW, 4 pcs Electrical Components: Contactor: SCHNEIDER Breaker: SCHNEIDER Mini Relay: OMRON Inverter: YASKAWA PLC: SIEMENS PLC Screen: WEINVIEW Button Switch: SCHNEIDER 7) Rewind Unit: Max Diameter of Rewind: 1200 mm Type of Rewind: Pneumatic auto unloading, magnetic powder 10 kgs Rewinder Inverter Reduce Motor: 3.7 kW Air Shaft: Dia. 76 mm Banana Roller: Included 8) Automatic EPC Device: Origin: China 9) Camera/Video Inspection: Camera Brand: PUSAI 10) Spare Parts Included: Tool Box: 1 set 1-10# Screwdriver: 1 pc Oil Gun: 1 pc Inner Hexagon Spanner: 1 set Switches & Buttons: 2 pcs Contactor: 2 pcs Heating Tube: 2 pcs Relay: 2 pcs Printing Cylinder Bearing: 2 pcs Air Faucet: 2 pcs Anilox Roll Gear: 1 pc One Direction Bearing: 2 pcs Chamber Doctor Blade Rubber Seal: 10 pcs 11) Machine Dimensions & Weight: Machine Dimensions (L×W×H): 6.5 m × 2.7 m × 3 m Machine Weight: 4500 kgs
