Sweeping saws

Price:

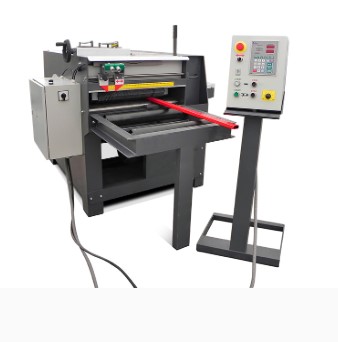

PARAMETERS • Saw blade diameter: 350 mm • Maximum material height: 105 mm • Main engine power: 7.5 – 22kW • Length of pulling rollers: 600 mm • Active shaft length: 500 mm • Disc travel: 400 mm • Maximum wood width: 700 mm • Pulling, bottom using 6 steel rollers • Roll movement: Electric Digital DESCRIPTION The KUSING RP-OP-600 4.2 rip saw is an industrial series for productions that are looking for a saw for longitudinal material cutting. The 4.2 model series is designed for industrial conditions for companies where the rip saw is one of the basic machines in production. It is recommended as a second machine after the band saw for processing board materials and thicker prisms up to a maximum height of 105mm. The designation 4.2 indicates the number of steel pulling rollers. In this version, there are 4 pulling rollers from the bottom and 2 pulling rollers from the top. The use of upper pulling rollers significantly increases the work and performance of the machine when working with heavy loads and is also recommended when processing dry lumber, where it often twists, while with the conventional concept with only lower rollers, the pulling efficiency and the contact area with the rollers are reduced. This concept is recommended for companies that require processing of thick and long prisms up to a maximum height of 105mm. The machine offers a wide range of modifications and accessories for ideal adaptation to production. These accessories consist of: • Inlet roller table • Output roller table • Digital distance indicator for plastering • Positioning any number of rolls using roll carriers • Moving two disks of fixed size simultaneously • Side ruler for processing boards with a straight edge Machine modifications: Extension of the traction rollers to 750 mm Construction opening: 850mm Disc diameter: 400mm (Cross section 130mm)
