Case Production

Price:

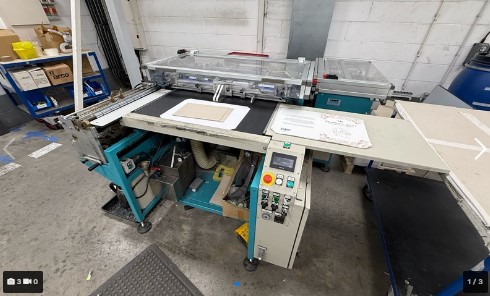

Ref: 10939 . 2010 CMC Q-Cover Four Semi Auto casemaker that can turn in all four sides in one pass. Equipped with: Huge variety of materials for high-quality cases and covers High output, more than 300 pcs/h possible Lining operations on the same unit Computer-driven water injection and washing system Stainless hot & cold gluing unit Automatic viscosity circuit and fast flushing system Case gauge for spine and pages Innovative corner tucking devices Vacuum-suction feeding belts for faster operation Easy-operation touchscreen Four-side turning-in in one pass Adjustable case-collection hopper Specification: Min size: 15mm x 15mm Max. size turned edge: 46 x 78mm Max. size edge-to-edge: 50 x 80mm Minimum Height of Case 105 mm Maximum Open Flat Case 760 x 460 mm Paper thickness 100g/m2 – 170g/m2 Board thickness: 1.5mm – 3mm Weight: 730kg Dimensions 200 x 280 x 125cm

We are providing good machinery for sales for our customers.
